Barco Projector Toolset
Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube. Audio equalizer for mac free. Projector Toolset is a software tool to set up, configure, manage and control Barco Digital Cinema Touch panels. The concept of this Projector Toolset software is modular. The basic package can be extended with sev- eral optional device plug-in modules, now and in the future available to control different projectors with one software package. Hello I am having difficulty connecting my mac to a Barco FLM using tool set. The 100m ethernet cable is working ok. I have changed the network connection settings on the projector to 192.168.000.001 and in tool set I have added the FLM and have added network setting of 192.168.000.002. A lengthy overview of Barcos projector control software that includes new features for their Pulse projectors.
- Barco Projector Toolset Download
- Barco Projector Toolset Manual
- Barco Crt Projector
- Barco Projector Price List

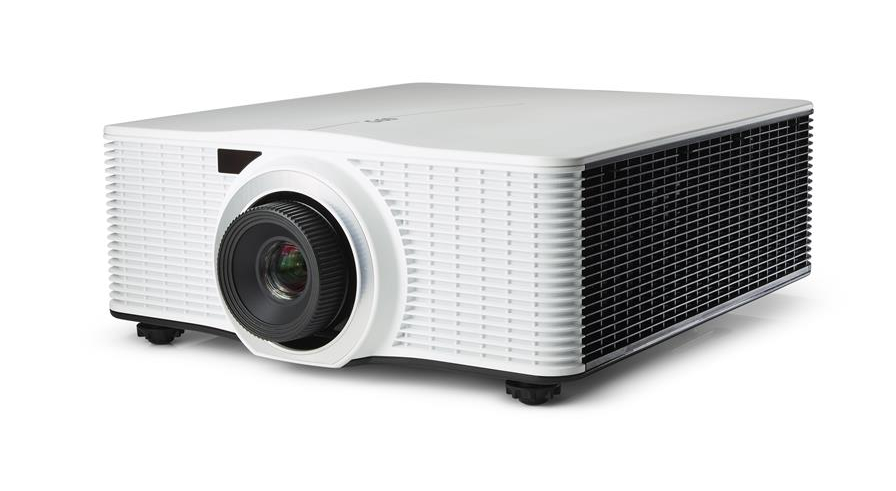

From Barco — The G100 series opens up the possibilities of our single-chip offering with higher brightness levels than before. It brings great image quality with an impressive lumens power for bright projections indoor and outdoor. What's more, the G100 supports all the latest input sources, including HDMI 2.0, to assure deep color palettes and qualitative projections. Thanks to Barco's Projector Toolset software, installing and managing your projector(s) can be done from the comfort of your own computer with an intuitive user interface. In addition, the Ptoolset blending and warping capabilities, make these projectors a perfect fit for multi-channel media-based attractions like planetariums, domes, theatres, and projection mappings.
- 17,200 ISO lumen / 16,200 center lumen / 14,500 ANSI lumen
- Contrast ratio: 1,100:1 sequential; 5,500:1 dynamic; Extreme black: 100,000:1
- Built for 24/7 operation
- Laser-phosphor light source
- Blending and warping capabilities
Product Downloads
Helpful Links
Barco G100-W16 Projector Specifications
- MSRP
- n/a
- Projection Mapping
- Events/Staging
- Museum/Exhibits
- Status
- Shipping
- Released
- February 2021
- Warranty
- 3 Years
- User Reviews
- Review this Projector
- Switch to English Units
- Brightness
- 14,500 ANSI Lumens
- Resolution
- 1920x1200
- Aspect Ratio
- 16:10 (WUXGA)
- Contrast
- 1,100:1
- Dynamic Contrast
- 5,500:1
- Display Type
- 2 cm DLP x 1
- Video Modes
- 720p, 1080i, 1080p/60, 1080p/24, 2160p/24, 2160p/60
- Data Modes
- MAX 4096x2160
- 3D Modes
- Full HD 3D
- Lamp Type
- Laser Phosphor
- Lamp Life
- 20,000 hours
- Included Lens
- No
- Lens Shift
- Horizontal & Vertical
- Digital Keystone
- No
- Projector Size
- 25 cm x 65 cm x 71 cm
- Weight
- 50.0 kg
- Audible Noise
- 42 dB / 36 dB
- Internal Speakers
- No
- Power
- 1,325 Watts 100V - 240V
Compare to the Competition
More Barco Projectors
Similar Projectors
Panasonic PT-RZ12KU
- Resolution: 1920x1200 DLP
- Brightness: 12000 ANSI Lumens
- Light Source: Laser
Vivitek DU9800Z-BK
- Resolution: 1920x1200 DLP
- Brightness: 18000 ANSI Lumens
- Light Source: Laser
Digital Projection M-Vision Laser 18K
- Resolution: 1920x1200 DLP
- Brightness: 16000 ANSI Lumens
- Light Source: Laser
Panasonic PT-RZ16KU
- Resolution: 1920x1200 DLP
- Brightness: 16000 ANSI Lumens
- Light Source: Laser
Christie D13WU2-HS
- Resolution: 1920x1200 DLP
- Brightness: 12000 ANSI Lumens
- Light Source: Laser
ANSI LUMENS is the most commonly accepted industry standard brightness measurement. The ANSI lumen rating measures the brightest white that a projector can produce by averaging nine light meter measurements taken across the projected image.
Manufacturer Cited Brightness:
BUYER BEWARE Either this projector's brightness specification does not cite an industry-accepted unit of measurement, or according to our calculations it seems unlikely that this projector is capable of producing the manufacturer's cited brightness specification.
Manufacturer Cited Brightness:
Barco RLM-W14
Introduction
Featuring a stylish projector design with a very stable lens mount, the RLM-W14 offers Active Stereo 3D and provides video over a single Cat 5 cable (HDBaseT™). It is designed for fixed installation in museums, theaters, houses of worship, hotels, lecture halls or conference auditoriums; but its extended warping and blending, rugged chassis and optional rental frame make it equally suited for the rental market as well.
Video over a single Cat 5 cable
Supporting point-to-point transmission of video signals – up to WUXGA (1,920 x 1,200) at 60 Hz – from a source converter to a projector over a single Cat 5 cable, the RLM-W14’s HDBaseT™ technology takes away the need for multiple cables and connectors, leading to more simplicity and lower costs.
Stunning images
Geared with three-chip DLP technology, the high-brightness RLM-W14 generates crisp and stable images with rich contrast and sensational colors. It also features a DICOM simulated mode that guarantees accurate grayscales and highly detailed images – key requirements for medical training.
Rugged design
Operating on a voltage of 110V - 240V, the RLM-W14 is a rugged projector that reduces noise and power consumption. Moreover, its TLD lenses are compatible with the RLM-W12, HDX and HDF projectors. It’s also standard equipped with BarcoLink, allowing native WUXGA @60 Hz signals to be transmitted between the Barco image processors and projectors via a single BNC cable, for simple and reliable signal distribution.
Features
- 14,500 lumens light output
- 3-chip DLP technology
- WUXGA (1,920 x 1,200) resolution
- Video over a single Cat 5 cable thanks to standard HDBaseT™
- Standard Active Stereo 3D
- Extended warping and blending
- Better color stability & saturation
- Perfect for fixed installations
- Rental frame available
- Low power consumption
- Wide range of TLD lenses, compatible with RLM-W12, HDX, HDF & FLM projectors
Specifications
| Projector type | WUXGA 3-chip DLP digital projector |
|---|---|
| Technology | 0.96' DMD™ x3 |
| Resolution | 1,920 x 1,200 |
| Brightness | 14,500 center lumens / 13,500 ANSI lumens |
| Contrast ratio | 1,650:1 (standard) / 2,400:1 (CE) |
| Brightness uniformity | 90% |
| Aspect Ratio | 16:10 |
| ScenergiX | Horizontal and vertical edge blending |
| Lens type | TLD+ |
| Lenses | (fix) 0.73:1 ; 1.2:1 ; (zoom) 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1; 7.5-11.5:1 |
| Optical lens shift | Vertical: -70% to +130% / Horizontal: +/-30% on zoom lenses memorized |
| Color correction | P7 |
| Lamps | 2x465W |
| Lamp lifetime | 2,000 hours (typical) / 2,500 hours (maximum) |
| Lamp warranty | 120 days, 500 hours |
| Sealed DLP™ core | Standard |
| Optical dowser | Standard |
| Picture-in-picture | Up to two sources simultaneously |
| Orientation | table - ceiling |
| WARP | preset values + custom |
| Integrated web server | Yes |
| 3D | Dual link DVI with sync in /out BNC |
| Inputs | HDMI (HDCP 1,3); HDBase-T; 5-BNC (RGBHV, RGBS/RGBsB;YUV); VGA (RGBHV, RGBS/RGBsB;YUV); cinch (RGBs, YUV); HSDI/ 3G HDSDI /SDI; 3D DUAL LINK DVI |
| Input Resolutions | From NTSC up to UXGA (1,600 x 1,200), including HDTV (1,920 x 1,200) |
| Max. pixel clock | 165Mhz up to 200Mhz |
| Software tools | Projection Toolset + Android app + iOS app |
| Control | Mini-jack + IR, RS232, 12v trigger |
| Network connection | 10/100 base-T, RJ-45 connection |
| Power requirements | 90-240V / 50-60Hz - 1,140W @ 240V, 1,230W @ 110V, STBY less than 2W |
| Noise level (typical at 25°C/77°F) | 46 dB(A) norm, 42dB(A) eco |
| Operational ambient temperature | 0-40°C / 32°-104°F |
| Operational humidity | 0-80% (non condens) |
| Dissipation BTU | max 4,131 BTU/h |
| Dimensions (WxLxH) | 631 x 504 x 270 mm / 24.8 x 19.82 x 10.63 inches |
| Weight | 33.5kg (73.8 lbs) |
| Shipping Dimensions | (LxWxH) 829 x 709 x 437 mm / 32.64 x 27.9 x 17.20 inches |
| Shipping Weight from Factory | 41.5 kg (91.49 lbs) |
| Standard accessories | Power cord, wireless remote control, HDMI to DVI adaptor |
| Certifications | Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, CE, TUV, RHoS, WEE |
| Warranty | 3 years standard, extra 2 years optional |
Downloads
RLM-W14 Safety, Quick Start, Installation Manual and Technical Drawings
Projector Toolset
Videos
Options
Lenses
Barco Projector Toolset Download
Barco Projector Toolset Manual
Barco Crt Projector
Barco Projector Price List
Mounting Accessories & Cases
RLM W Series Rental Frame Order number: R9899700 |
RLM W-series Frame Clamps (4 pieces) Order number: R9801061 |
Ceiling mount for CLM/RLM-W Order number: R9849999 |
Ceiling mount extension bar with adjustable height. CLM long pulley 800-1165 Order number: R9841261 |
Ceiling mount extension bar with fixed height. CLM short pulley 400-765 Order number: R9841260 |
RLM flight case Order number: R9899731 |
Remote Control and Control Software
RLM-W14 remote control 26 keys Order number: R9801344 |
All-in-one remote projector management software Projector Toolset Order number: R9850559 |
3D Accessories
RLM 3D filter frame Order number: R9864220 |
RLM 3D filter glass left Order number: R852930K |
RLM 3D filter glass right Order number: R852929K |
RLM-W14 filter kit 2 pcs Order number: R9801342 |
3D emitter Volfoni Order number: R9801091 |
3D eyewear Volfoni Order number: R9801092 |
Lamps
RLM-W14 465W lamp with housing Order number: R9801343 |
